Prestress Carbon Fiber Plate

Post-tension CFRP Plate

No.1 in domestic sales No.1 in export sales

20Years

in the Industry
30%

Market Share in China
90000+

Projects Worldwide
7000+

Global Customers

National & Provincial Awards

丨

20item

National & Industrial Standard Co-drafter
consecutive13years

Insured by PICC with Zero Claim Records
9item

Authoritative International Certifications
143item

Granted Patents

R&D Center

Innovation-Driven | Industry-Leading

million RMB annually in R&D, collaborating with leading institutions including the Chinese Academy of Sciences, Tsinghua University, Tongji University, and Syracuse University (USA). Horse Construction has established the Yangtze River Delta National Joint Innovation Center.

Expert Advisor from the Chinese Academy of Sciences

Graduate Joint Training Base — Nanjing Forestry University, Civil Engineering

Expert Advisor from Syracuse University, USA

Yangtze River Delta National Innovation Center — Joint Innovation Hub

Tongji University — Joint R&D Center for Infrastructure Renewal & Strengthening

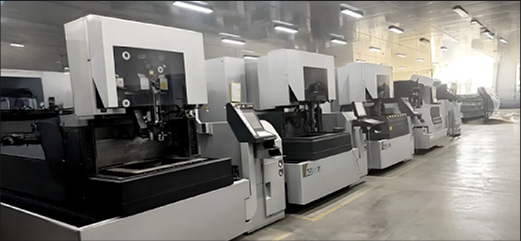

R&D & Production Base

Adopt imported aerospace-grade carbon filament raw materials

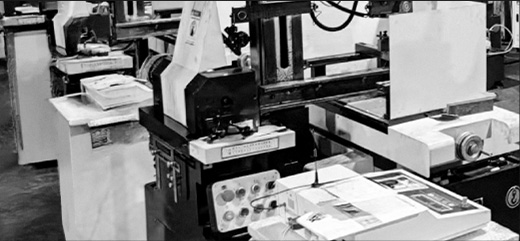

High-precision carbon fiber composite pultrusion equipment
Anchorage production equipment

Why Choose Horse Construction Carbon Fiber Plate Reinforcement System?

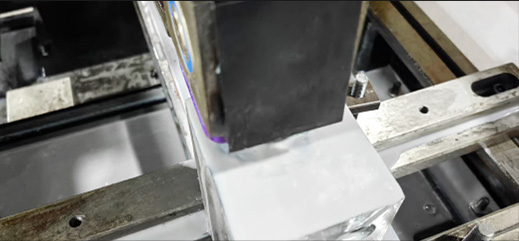

10 Categories 46 Test Items

Carbon Fiber Plate Advantages

Proprietary formula for more uniform composite mixing

even heat distribution

superior resin performance after curing

better straightness and flatter surface

lower internal stress for safer installation

Anchor Advantages

Minimal plate damage with maximum clamping force

no bond failure between carbon plate and concrete

high tensioning force with no peel failure

safer and more durable system

reduces project cost

supports secondary tensioning

Application Areas

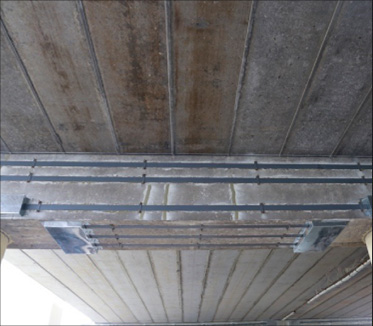

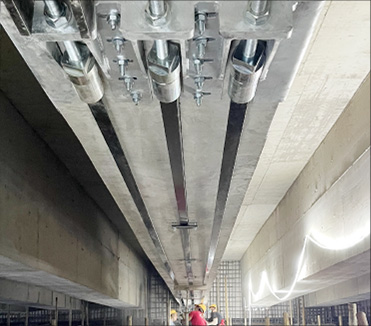

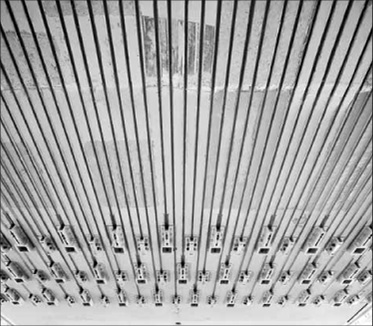

Flexural reinforcement of large-span beams and slabs in highways, railways, industrial buildings, and commercial structures

Paired Products

Installation Process

1 Positioning
2 Grinding

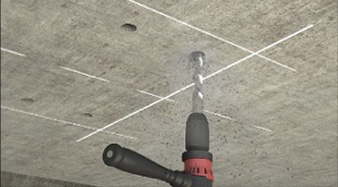

3 Drilling

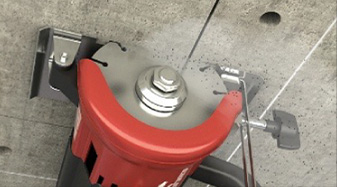

4 Sloting

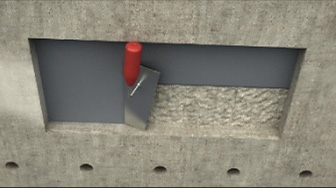

5 leveling

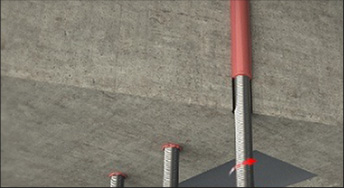

6 Install anchor bolts

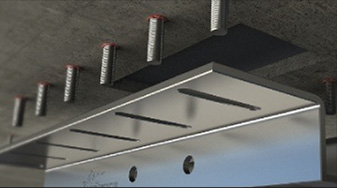

7 Install limit frame

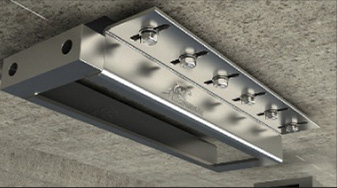

8 Install anchor block

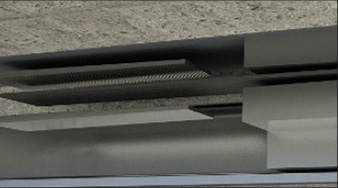

9 Install carbon plate

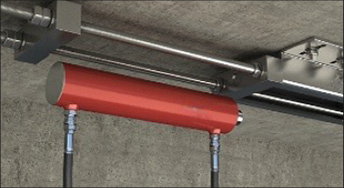

10 Install jack

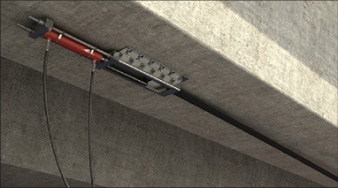

11 Pre-tensioning
12 Apply adhesive

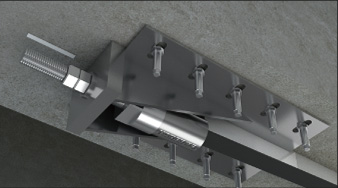

13 Final tensioning
14 Install carbon fiber plate
15 Product protection

Standard Installation Process — 3D Video

Product Specifications

Product Name	Model		Specifications
Carbon Fiber Plate	HM-2.0	Thickness	2.0mm
		Width	50mm/100mm
		Length	100m/roll
	HM-3.0	Thickness	3.0mm
		Width	20mm/50mm/100m
		Length	100m/roll
Anchorage	HM-MJ1OO
	HM-MJ5O
	HM-MJ2O
	HM-MJ-G5O
Testing Items	ASTM
Carbon Fiber Plate	Standard Tensile Strength (MPa)		≥2400
	Tensile Modulus (MPa)		≥1.6x10⁵
	Elongation (%)		≥1.6
	Interlaminar Shear Strength (MPa)		≥50
	Bonding Strength With Concrete (MPa)		≥2.5, concrete cohesion damaged
	Carbon Fiber Content (%)		≥6
Anchorage	Steel Tensile Strength (MPa)		≥345
	Stress Amplitude Difference (MPa)		160
	2 million fatigue testing Fmin (MPa)		1120
	2 million fatigue testing Fmax (MPa)		1280
