Carbon Fiber Plate

UD Carbon Fiber Plate

No.1 in domestic sales No.1 in export sales

20Years

in the Industry
30%

Market Share in China
90000+

Projects Worldwide
7000+

Global Customers

National & Provincial Awards

丨

20item

National & Industrial Standard Co-drafter
consecutive13years

Insured by PICC with Zero Claim Records
9item

Authoritative International Certifications
143item

Granted Patents

R&D Center

Innovation-Driven | Industry-Leading

million RMB annually in R&D, collaborating with leading institutions including the Chinese Academy of Sciences, Tsinghua University, Tongji University, and Syracuse University (USA). Horse Construction has established the Yangtze River Delta National Joint Innovation Center.

Expert Advisor from the Chinese Academy of Sciences

Graduate Joint Training Base — Nanjing Forestry University, Civil Engineering

Expert Advisor from Syracuse University, USA

Yangtze River Delta National Innovation Center — Joint Innovation Hub

Tongji University — Joint R&D Center for Infrastructure Renewal & Strengthening

R&D & Production Base

Adopt imported aerospace-grade carbon filament raw materials
High-precision carbon fiber composite pultrusion equipment

Why Choose Horse Construction Carbon Fiber Plate Reinforcement System?

10 Categories 46 Test Items

Lab Testing

Carbon Fiber Plate Advantages

Proprietary formula for more uniform composite mixing

even heat distribution

superior resin performance after curing

better straightness and flatter surface

lower internal stress for safer installation

Application Areas

load increases; seismic reinforcement; improve structural state; damage of structural parts; change the structural function; remit mistakes in design and construction

Bridge
Tunnel
Building

Paired Products

Installation Process

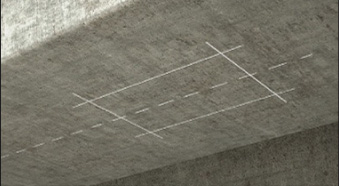

1 Positioning

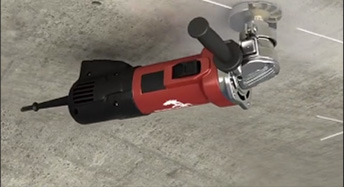

2 Grinding

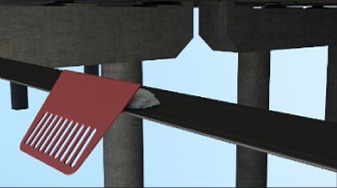

3 Apply adhesive

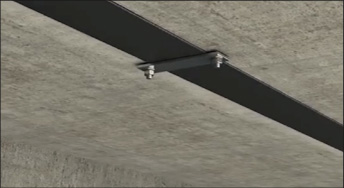

4 Install carbon fiber plate

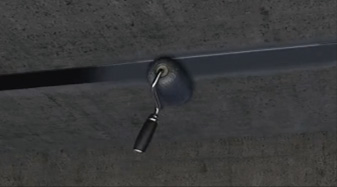

5 Product protection

Standard Installation Process

Product Specifications

Product Name	Model		Specifications
Carbon Fiber Plate	HM-1.2	Thickness	1.2mm
		Width	50mm/100mm
		Length	100m/roll
	HM-1.4	Thickness	1.4mm
		Width	50mm/80mm/100mm/120mm/150mm
		Length	100m/roll
	HM-2.0	Thickness	2.0mm
		Width	50mm/100mm
		Length	100m/roll
	HM-3.0	Thickness	3.0mm
		Width	20mm/50mm/100mm
		Length	100m/roll
Carbon Fiber Plate	Standard Tensile Strength (MPa)		≥2400
	Tensile Modulus (MPa)		≥1.6x10⁵
	Elongation (%)		≥1.6
	Interlaminar Shear Strength (MPa)		≥50
	Bonding Strength With Concrete (MPa)		≥2.5, concrete cohesion damaged
	Carbon Fiber Content (%)		≥65
